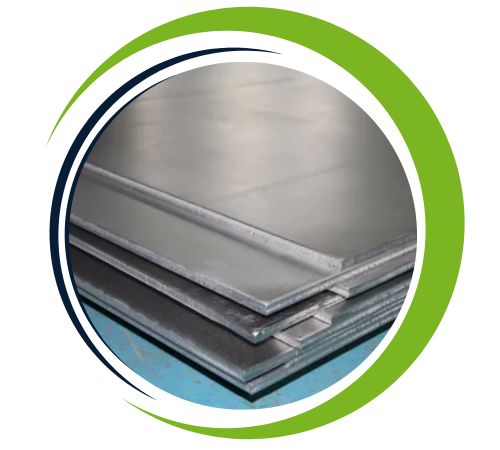

Ahmed Sheets and Plates, based in Safat, Kuwait, has earned a solid reputation as a reliable manufacturer and supplier of top-notch Zirconium Sheets and Plates. They’re well-known for offering high-performance materials specifically designed for specialized industries, focusing on products that boast exceptional purity, corrosion resistance, and long-lasting durability. Their Zirconium Sheets and Plates are crafted to endure highly corrosive environments, making them perfect for applications in chemical, nuclear, and advanced engineering fields. With a strong dedication to precision, quality assurance, and customer satisfaction, Ahmed Sheets and Plates is committed to supporting demanding global industries with dependable zirconium solutions that adhere to strict international standards.
These Zirconium Sheets and Plates are made from high-purity zirconium, often mixed with small amounts of hafnium, which naturally occurs alongside it. This combination provides remarkable corrosion resistance, particularly in acidic and alkaline settings. They also exhibit excellent mechanical properties, such as high tensile strength, outstanding ductility, and stability at elevated temperatures. Zirconium maintains its structural integrity even under thermal and chemical stress, while also being easy to weld and machine. These qualities make Zirconium Sheets and Plates an excellent choice for applications that require both durability and chemical inertness.
| Standard Specification : | ASTM B551 / ASME SB551 |
| Dimensions : | ASTM, ASME, and API |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Zirconium and Zirconium Alloys Chemical Composition | |||||||||
| Products | Chemical Composition (wt%≤) | ||||||||
| Sn | Fe | Ni | Cr | Fe+Cr | Fe+Ni+Cr | Nb | Al | B | |
| R60001 Nuclear Grade Pure Zirconium (Zr-0) | 0.005 | 0.15 | 0.0070 | 0.02 | – | – | – | 0.0075 | 0.0005 |
| R60802 (Zr-2) | 1.20-1.70 | 0.07-0.20 | 0.03-0.08 | 0.05-0.15 | – | 0.18-0.38 | – | 0.0075 | 0.0005 |
| R60804 (Zr-4) | 1.20-1.70 | 0.18-0.24 | 0.0070 | 0.07-0.13 | 0.28-0.37 | – | – | 0.0075 | 0.0005 |
| R60901 (Zr-2.5Nb) | 0.0050 | 0.150 | 0.0070 | 0.02 | – | – | 2.4-2.8 | 0.0075 | 0.0005 |
| R60904 (Zr-2.5Nb) | 0.010 | 0.065 | 0.0035 | 0.01 | – | – | 2.5-2.8 | 0.0075 | 0.0005 |
| Zirconium and Zirconium Alloys Sheet & Plate Mechanical Properties | |||||
| Grades | |||||
| Products | R60700 | R60702 | R60704 | R60705 | R60706 |
| Tensile strength, min, ksi (MPa) | – | 55 (380) | 60 (415) | 80 (550) | 74 (510) |
| Yield strength, min, ksi (MPa) | – | 30 (205) | 35 (240) | 55 (380) | 50 (345) |
| Tensile strength, max, ksi (MPa) | 55 (380) | – | – | – | – |
| Yield strength, max, ksi (MPa) Sheet, Plate and Strip | 44 (305) | – | – | – | – |
| Elongation in 2 in. or 50 mm, min, % | 20 | 16 | 14 | 16 | 14 |
| Bend test radius | 5T | 5T | 5T | 3T | 2.5T |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Ahmed Sheets and Plates based in Safat, Kuwait, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Zirconium sheets and plates offer several advantages, including exceptional corrosion resistance, especially in harsh environments like acids, seawater, and high-temperature conditions. They possess excellent strength, toughness, and high melting points, making them ideal for demanding applications in aerospace, nuclear, and chemical industries. Zirconium is also biocompatible, making it suitable for medical and dental uses. Additionally, its low thermal expansion and superior fatigue resistance enhance its performance in critical applications. The material’s durability, combined with excellent weldability and formability, ensures long-lasting, reliable performance in various industrial sectors.
Yes, we offer custom sizes for Zirconium Sheets and Plates to meet specific project needs. Our team at Ahmed Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
Zirconium Sheets and Plates are extensively used in industries where superior corrosion resistance and high-temperature performance are crucial. In chemical processing, they’re employed in heat exchangers, reactor vessels, pumps, and piping systems that come into contact with strong acids. The nuclear sector values zirconium for its low neutron absorption, making it ideal for fuel cladding and reactor components. In aerospace and defense, it’s utilized for high-temperature parts and specialized alloys. Additionally, zirconium is found in medical devices, electronics, desalination plants, and laboratory equipment, where its unique properties are essential.
