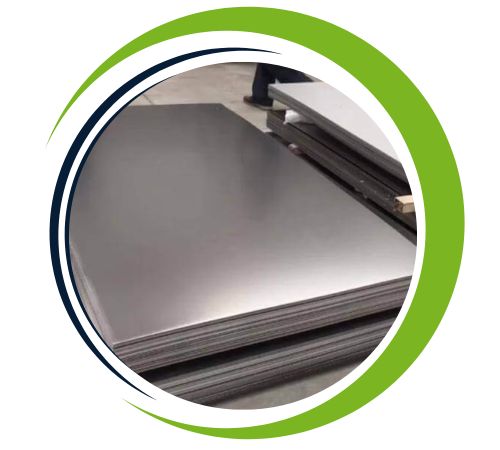

Ahmed Sheets and Plates, located in Safat, Kuwait, has earned a solid reputation as a reliable manufacturer and supplier of top-notch Titanium Sheets and Plates. They cater to a wide array of industrial, engineering, and commercial sectors. Known for their commitment to meeting global performance and safety standards, the company prioritizes precision, durability, and customer satisfaction. Their Titanium Sheets and Plates are designed to provide outstanding corrosion resistance, lightweight strength, and long-lasting reliability, making them perfect for challenging environments. With cutting-edge manufacturing capabilities and a dedication to excellence, Ahmed Sheets and Plates consistently delivers trustworthy titanium solutions that meet the demands of modern industries.
These Titanium Sheets and Plates are crafted from commercially pure titanium or titanium alloys, showcasing an impressive blend of high strength, low density, and corrosion resistance. They boast excellent tensile strength, remarkable resistance to oxidation, and stable performance across a broad temperature range. Additionally, they offer good ductility, weldability, and formability, making them versatile for various fabrication needs. The high strength-to-weight ratio and biocompatibility of titanium further enhance its application in specialized fields. These mechanical and chemical properties make Titanium Sheets and Plates perfect for uses that require durability, lightness, and resistance to harsh conditions.
| ASTM Specification | ASTM A240 / ASME SA240 |
|---|---|
| Standard | MSRR, AMS, BS, ASTM A240 / ASME SA240 |
| Length & Sizes | 1000 mm x 2000 mm, 1000 mm x 2000 mm, 1220 mm x 2440 mm, 1250mm x 2500mm, 1500mm x 3000mm to 6000mm, 2000mm x 4000mm to 6000mm, 1500 mm x 3000 mm, 2000 mm x 2000 mm, 2000 mm x 4000 mm, 2m, 2.44m, 3m, 36″ X 120″ or 48″ X 144″, 4′ x 8′, Cut to size available |
| Thickness | 0.1mm to 100 mm Thk |
| Width | 10-2500mm |
| Hardness | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Temper | Annealed |
| Condition | Polished on both sides |
| Finish | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |
| Stock in form of | Plate, Sheet, Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Strip, Flats, Clad Plate, Rolling Sheet, Flat Sheet, Rolling Plate, Flat Shim, Blank (Circle), hot rolled, cold rolled, annealed, soft annealed, descaled, sheared, tread plate, Checker Plate |
| Value Added Service | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Test Report |
|
| Profiling | To provide a full profiling service we use numerous profiling methods including:
|
| Specialized in |
|
| We offer a comprehensive services designed to add value to your project: plasma cutting, waterjet cutting, laser cutting, bending and mechanical processing, edge preparation, welding, sawing and shearing. | |
| Grade | Ti | C | Fe | H | N | O | Al | V |
| Ti Grade2 | 99.2 min | 0.1 max | 0.3 max | 0.015 max | 0.03 max | 0.25 max | – | – |
| Ti Grade5 | 90 min | – | 0.25 max | – | – | 0.2 max | 6 min | 4 min |
| Element | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| Titanium Gr. 2 | 4.5 g/cm3 | 1665 °C (3030 °F) | Psi – 49900 , MPa – 344 | Psi – 39900 , MPa – 275 | 20 % |
| Titanium Gr. 5 | 4.43 g/cm3 | 1632 °C (2970 °F) | Psi – 138000 , MPa – 950 | Psi – 128000 , MPa – 880 | 14 % |
| 6Al-4V TITANIUM SHEET SIZES | ||||||
|---|---|---|---|---|---|---|
| Thickness (in) | Size (in) | Appx. Weight Per Sheet (lbs) | ||||
| .016 | 36 x 96 | 8.8 | ||||
| .020 | 36 x 96 | 11.0 | ||||
| .025 | 36 x 96 | 13.8 | ||||
| .032 | 36 x 96 | 17.7 | ||||
| .040 | 36 x 96 | 22.1 | ||||
| .050 | 36 x 96 | 27.7 | ||||
| .063 | 36 x 96 | 34.9 | ||||
| .071 | 36 x 96 | 39.3 | ||||
| .080 | 36 x 96 | 44.2 | ||||
| .090 | 36 x 96 | 49.8 | ||||
| .100 | 36 x 96 | 55.3 | ||||
| .125 | 36 x 96 | 69.1 | ||||
| .160 | 36 x 96 | 88.5 | ||||
| .187 | 36 x 96 | 103.4 | ||||
| CP GRADE 2 TITANIUM SHEET | ||||||
|---|---|---|---|---|---|---|
| Thickness (in) | Size (in) | Appx. Weight Per Sheet (lbs) | ||||
| .020 | 48 x 120 | 18.8 | ||||
| .028 | 48 x 120 | 26.3 | ||||
| .035 | 48 x 120 | 32.9 | ||||
| .040 | 48 x 120 | 37.6 | ||||
| .050 | 48 x 120 | 46.9 | ||||
| .063 | 48 x 120 | 59.1 | ||||
| .078 | 48 x 120 | 73.2 | ||||
| .093 | 48 x 120 | 87.3 | ||||
| .125 | 48 x 120 | 117.4 | ||||
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Titanium sheets and plates offer exceptional strength-to-weight ratio, making them ideal for lightweight yet strong applications. They exhibit excellent corrosion resistance in aggressive environments like seawater and chemicals. Titanium also has high-temperature resistance, ensuring performance in extreme conditions. Its biocompatibility makes it suitable for medical and aerospace applications. Furthermore, titanium is non-magnetic, has low thermal expansion, and is highly durable with a long service life. Its versatility, excellent weldability, and formability make titanium sheets and plates a preferred choice across various industries.
| Thickness | Plate Weight per Unit Area | Density |
|---|---|---|
| 3/16 inches | 0.06000 lbs/in²42.184176 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/4 inches | 0.08 lbs/in²56.245568 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/8 inches | 0.121 lbs/in²85.0714216 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1/2 inches | 0.161 lbs/in²113.1942056 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 5/8 inches | 0.196 lbs/in²137.8016416 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3/4 inches | 0.235 lbs/in²165.221356 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 7/8 inches | 0.274 lbs/in²192.6410704 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 inches | 0.313 lbs/in²220.0607848 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/4 inches | 0.391 lbs/in²274.9002136 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 1/2 inches | 0.47 lbs/in²330.442712 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 1 3/4 inches | 0.549 lbs/in²385.9852104 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 inches | 0.627 lbs/in²440.8246392 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/4 inches | 0.705 lbs/in²495.664068 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 1/2 inches | 0.784 lbs/in²551.2065664 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 2 3/4 inches | 0.862 lbs/in²606.0459952 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
| 3 inches | 0.941 lbs/in²661.5884936 kg/m² | 0.315 lbs/in³8.72 g/cm³ |
Titanium Sheets and Plates find their way into numerous industries that demand exceptional corrosion resistance, high strength, and lightweight performance. In aerospace, they are essential for aircraft structures, engine components, and heat-resistant assemblies. The marine industry depends on them for shipbuilding parts and equipment exposed to seawater. In the medical field, their biocompatibility makes them ideal for implants, surgical instruments, and diagnostic devices. Chemical processing plants utilize them for reactors, heat exchangers, and storage vessels, thanks to their ability to withstand aggressive environments.
