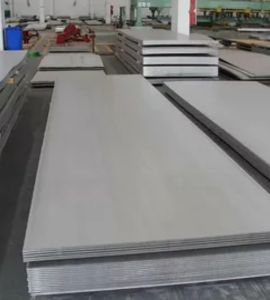

Ahmed Sheets and Plates is a trusted manufacturer and supplier of top-notch Stainless Steel 316 Sheets and Plates based in Safat, Kuwait. They provide premium materials designed for outstanding corrosion resistance and durability. With a strong focus on precision and consistency, this company ensures that their products meet international standards and serve a variety of industrial needs. Their Stainless Steel 316 Sheets and Plates are particularly recognized for their remarkable performance in tough environments, such as marine and chemical settings. Thanks to advanced production methods and strict quality control, Ahmed Sheets and Plates delivers reliable material solutions for engineering, fabrication, and structural applications.
The composition of Stainless Steel 316 Sheets and Plates includes chromium, nickel, and molybdenum, which enhances their resistance to pitting, crevice corrosion, and chemical attacks. The addition of molybdenum significantly boosts corrosion resistance in environments rich in chloride. On the mechanical side, Stainless Steel 316 boasts excellent tensile strength, good yield strength, and impressive toughness, even in low temperatures. It also offers great formability, weldability, and resistance to stress corrosion cracking, making it a versatile choice for demanding industrial applications.
| Specifications | : | ASTM A240 / ASME SA240 |
| Thickness | : | 4mm-100mm |
| Width | : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Length | : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |

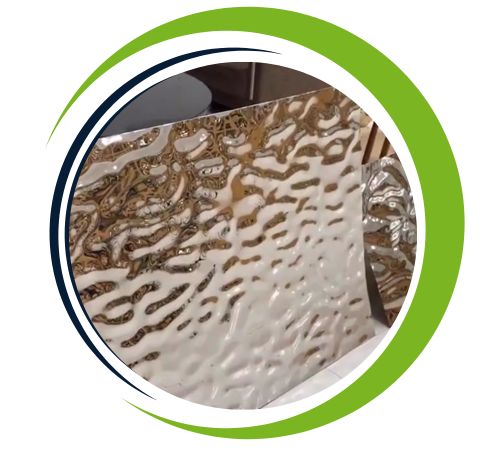

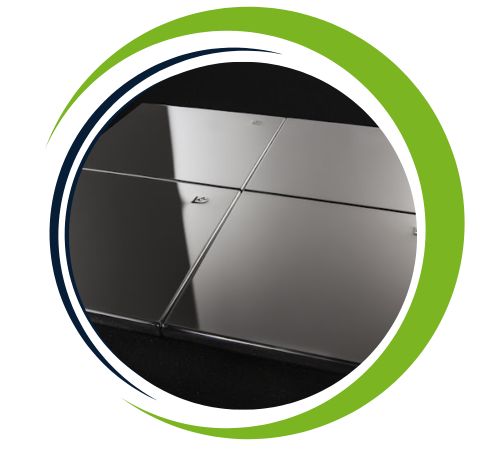

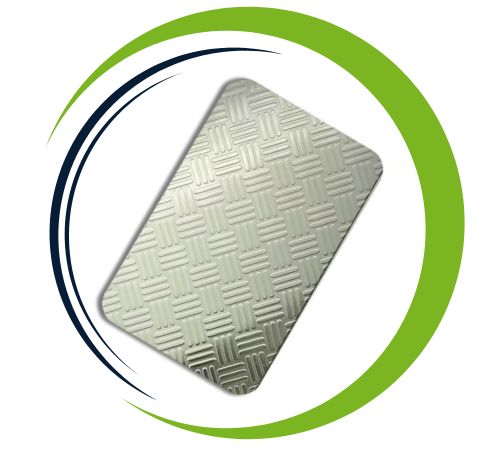

| Surface | : | 2B, 2D, BA, NO.1, NO.4, NO.8, 8K, mirror, checkered, embossed, hair line, sand blast, Brush, etching, etc |

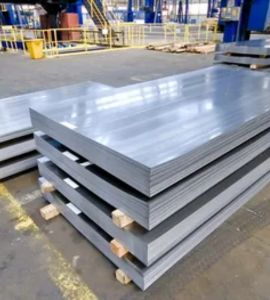

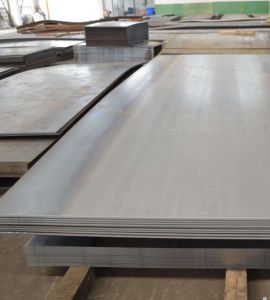

| Finish | : | Hot rolled plate (HR), Cold rolled sheet (CR), 2B, 2D, BA NO(8), SATIN (Met with Plastic Coated) |

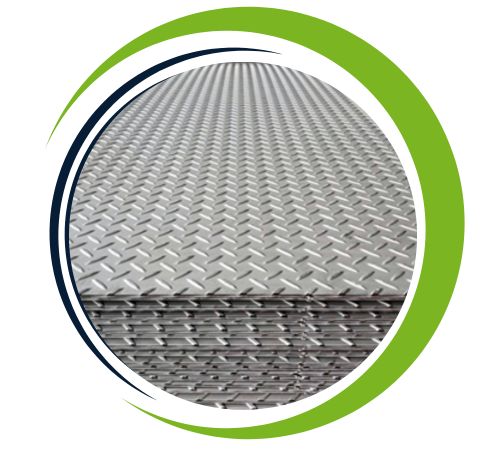

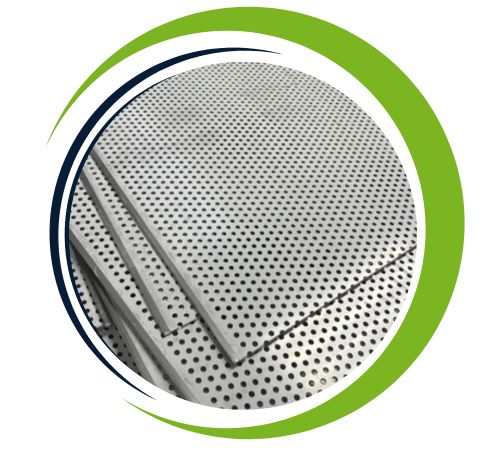

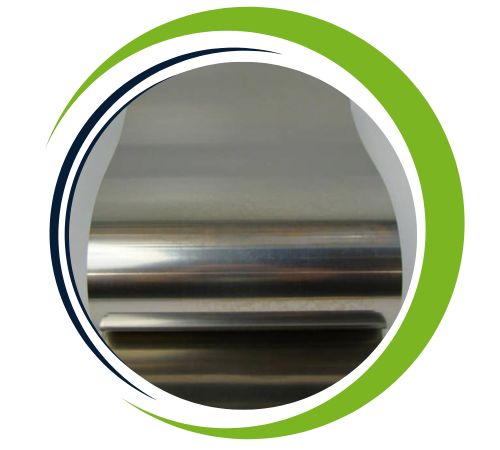

| Form | : | Coils, Foils, Rolls, Plain Sheet, Shim Sheet, Perforated Sheet, Chequered Plate, Strip, Flats, Blank (Circle), Ring (Flange) etc. |
| Grade | C | Mn | Si | P | S | Cr | Mo | Ni | N |
| SS 316 | 0.08 max | 2 max | 1.0 max | 0.045 max | 0.030 max | 16.00 – 18.00 | 2.00 – 3.00 | 11.00 – 14.00 | 67.845 min |
| Grade | Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| SS 316 | 8.0 g/cm3 | 1400 °C (2550 °F) | Psi – 75000 , MPa – 515 | Psi – 30000 , MPa – 205 | 35 % |
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| SS 316 | 1.4401 / 1.4436 | S31600 | SUS 316 | 316S31 / 316S33 | – | Z7CND17‐11‐02 | X5CrNiMo17-12-2 / X3CrNiMo17-13-3 |
| Material | Size | Thickness |
| PLATES & SHEETS | 1000 mm x 2000 mm | 0.1mm To 100 mm Thickness |
| 1220 mm x 2440 mm (4′ x 8′) | ||
| 1250 mm x 2500 mm | ||
| 1500 mm x 3000 mm | ||
| 2000 mm x 4000 mm | ||
| 2000 mm x 2000 mm |
| Surface Finish | Definition | Application |
|---|---|---|
| 2B | Those finished, after cold rolling, by heat treatment, pickling or other equivalent treatment and lastly by cold rolling to given appropriate luster. | Medical equipment, Food industry, Construction material, Kitchen utensils. |
| BA | Those processed with bright heat treatment after cold rolling. | Kitchen utensils, Electric equipment, Building construction. |
| NO.3 | Those finished by polishing with No.100 to No.120 abrasives specified in JIS R6001. | Kitchen utensils, Building construction. |
| NO.4 | Those finished by polishing with No.150 to No.180 abrasives specified in JIS R6001. | Kitchen utensils, Building construction, Medical equipment. |
| HL | Those finished polishing so as to give continuous polishing streaks by using abrasive of suitable grain size. | Building Construction. |
| NO.1 | The surface finished by heat treatment and pickling or processes corresponding there to after hot rolling. | Chemical tank, pipe |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Stainless steel 316 sheets and plates have many advantages, including exceptional corrosion resistance, especially in high chloride environments, making them ideal for marine and chemical applications They are extremely durable, . it has good strength, resistance to potholes, crack corrosion, and oxidation . It also provides excellent weldability, formability and toughness at high and low temperatures. Stainless Steel 316 is non-magnetic and resistant to extreme conditions, providing durability and reliability. These properties make it ideal for food processing, pharmaceutical, marine, and other industries.
These Stainless Steel 316 Sheets and Plates find their way into various industries that demand exceptional corrosion resistance and durability. They’re commonly used in marine settings for boat fittings, seawater equipment, and coastal structures. In the chemical and petrochemical sectors, they serve in tanks, piping, heat exchangers, and reactors due to their ability to withstand aggressive chemicals. The food processing, pharmaceutical, and medical equipment manufacturing industries also depend on SS 316 for its hygienic qualities and ease of cleaning. Additionally, it plays a vital role in architecture, oil and gas industries, water treatment systems, and industrial fabrication, where strength, longevity, and corrosion protection are crucial.
