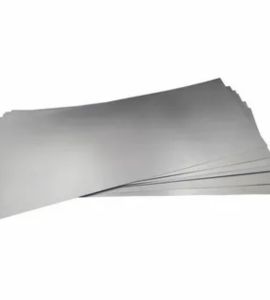

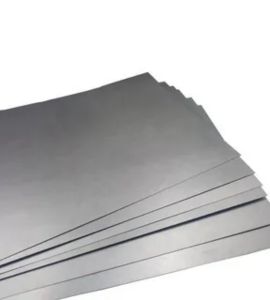

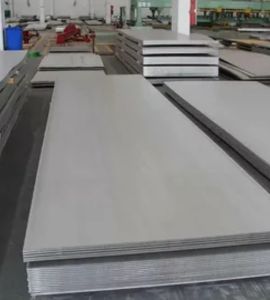

Ahmed Sheets and Plates, a reliable manufacturer and supplier in Safat, Kuwait, is known for producing high-performance Rene 41 Sheets and Plates designed for extreme temperature and high-stress conditions. The company is dedicated to engineering excellence, ensuring that each product meets strict international standards for durability, strength, and reliability. Rene 41, a top-quality nickel-based superalloy, is valued for its outstanding heat resistance and mechanical stability. With effective manufacturing processes, precise quality control, and attentive customer service, Ahmed Sheets and Plates has become a leading provider of specialized high-temperature alloys in Kuwait.
Rene 41 Sheets and Plates consist of a nickel-chromium base alloy mixed with cobalt, molybdenum, titanium, and aluminum. This combination gives the alloy exceptional strength and oxidation resistance at high temperatures. Mechanically, Rene 41 shows impressive tensile and creep-rupture strength, maintaining stability even above 800°C. The alloy offers excellent fatigue resistance, retains good hardness, and delivers reliable performance under thermal stress. Although it can be difficult to machine because of its high strength, Rene 41 offers great long-term durability, making it suitable for applications that need extreme heat and stress resistance.
| Standard Specification : | AMS 5545, AMS 5712, AMS 5713, AMS 5800, EN 2.4973, GE B50T59, GE B50TF109, GE B50TF76, UNS N07041, Werkstoff 2.4973 |
| Dimensions : | AMS |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Grade | UNS | Workstoff | AMS | GE |
| Rene 41 | N07041 | 2.4973 | AMS 5545, AMS 5712, AMS 5713, AMS 5800 | GE B50TF109, GE B50TF76 |
| Cr | Ni | Mo | Co | Al | Ti | B | C | Fe | Mn | Si | S | Cu | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MIN | 18.00 | — | 9.00 | 10.00 | 1.40 | 3.00 | 0.003 | — | — | — | — | — | — |
| MAX | 20.00 | Balance | 10.50 | 12.00 | 1.80 | 3.30 | 0.01 | 0.12 | 5.00 | 0.10 | 0.50 | 0.015 | 0.50 |
| Mechanical & Physical Properties | 21°C | 427°C | 538°C | 649°C | 760°C | 871°C | 982°C |
|---|---|---|---|---|---|---|---|
| Ultimate Tensile Strength /MPa | 1261.7 | – | – | 1117 | 1048 | 710.2 | – |
| 0.2% Yield Strength /MPa | 820.5 | – | – | 765.3 | 751.5 | 579.2 | – |
| Elongation % | 21 | – | – | 14 | 14 | 11 | – |
| Coefficient of Thermal Expansion µm/m⁰C | – | 13.3 | 13.7 | 14.3 | 15.1 | 15.5 | 16.7 |
| Thermal Conductivity /kcal/(hr.m.°C) | – | 14.4 | 16.1 | 17.9 | 19.6 | 21.4 | – |
| Modulus of Elasticity / x105 MPa | – | 2 | 1.93 | 1.79 | 1.72 | 1.65 | 1.52 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Ahmed Sheets and Plates based in Safat, Kuwait, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Rene 41 sheets and plates offer numerous advantages, making them a preferred choice for demanding applications. They provide exceptional strength and durability, maintaining integrity under extreme temperatures and high-stress conditions. Their superior heat resistance and oxidation protection ensure long-lasting performance in environments exceeding 980°C (1800°F). With excellent corrosion resistance, Rene 41 is ideal for aerospace, power generation, and automotive industries. Its outstanding weldability and machinability enable precise fabrication for complex components. These properties make Rene 41 sheets and plates a reliable and versatile solution for critical, high-performance applications.
Yes, we offer custom sizes for Rene 41 Sheets and Plates to meet specific project needs. Our team at Ahmed Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
