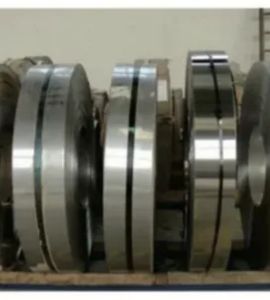

Ahmed Sheets and Plates is a well-respected manufacturer and supplier of Rene 41 Foil based in Safat, Kuwait. They specialize in high-performance materials that are built to withstand extreme temperatures and high-stress environments. Thanks to their advanced manufacturing techniques and rigorous quality control, the company offers Rene 41 Foil that boasts exceptional strength, durability, and resistance to oxidation. Their products are trusted in various sectors, including aerospace, power generation, and high-temperature industrial applications. By focusing on precise fabrication, timely delivery, and compliance with global standards, Ahmed Sheets and Plates has established itself as a dependable partner for clients in need of top-notch superalloy foils for their critical and demanding projects.
Rene 41 Foil is a high-temperature nickel-based superalloy primarily made up of nickel, chromium, cobalt, and molybdenum, with added titanium and aluminum to boost precipitation hardening. This alloy is known for its impressive tensile and yield strength, excellent creep resistance, and stability at temperatures reaching up to 1800°F (982°C). It offers superior oxidation resistance and maintains its mechanical integrity even under extreme thermal stress. With its remarkable hardness, fatigue strength, and dimensional stability, Rene 41 Foil is ideal for harsh operating conditions where traditional alloys might fall short.
| Standard Specification : | AMS 5545, AMS 5712, AMS 5713, AMS 5800, EN 2.4973, GE B50T59, GE B50TF109, GE B50TF76, UNS N07041, Werkstoff 2.4973 |
| Dimensions : | AMS |
| Sheets Thickness : | Range from .008″ to .0125″ |
| Plates Thickness : | Ranges from .0125″ to 5.00″ |
| Sheets/Plates Width : | 1000mm, 1219mm, 1500mm, 1800mm, 2000mm, 2500mm, 3000mm, 3500mm, etc |
| Sheets/Plates Length : | 2000mm, 2440mm, 3000mm, 5800mm, 6000mm, etc |
| Tempers : | Annealed, 1/4, 1/2 Hard, 3/4 Hard, Full Hard |
| Hardness : | Soft, Hard, Half Hard, Quarter Hard, Spring Hard etc. |
| Value Added Service : | Cladding, Heat Treatment, Annealed, Pickling, Polish, Rolling, Cutting, Bending, Forging, Minor Fabrication Etc. |
| Grade | UNS | Workstoff | AMS | GE |
| Rene 41 | N07041 | 2.4973 | AMS 5545, AMS 5712, AMS 5713, AMS 5800 | GE B50TF109, GE B50TF76 |
| Cr | Ni | Mo | Co | Al | Ti | B | C | Fe | Mn | Si | S | Cu | |
|---|---|---|---|---|---|---|---|---|---|---|---|---|---|
| MIN | 18.00 | — | 9.00 | 10.00 | 1.40 | 3.00 | 0.003 | — | — | — | — | — | — |
| MAX | 20.00 | Balance | 10.50 | 12.00 | 1.80 | 3.30 | 0.01 | 0.12 | 5.00 | 0.10 | 0.50 | 0.015 | 0.50 |
| Mechanical & Physical Properties | 21°C | 427°C | 538°C | 649°C | 760°C | 871°C | 982°C |
|---|---|---|---|---|---|---|---|
| Ultimate Tensile Strength /MPa | 1261.7 | – | – | 1117 | 1048 | 710.2 | – |
| 0.2% Yield Strength /MPa | 820.5 | – | – | 765.3 | 751.5 | 579.2 | – |
| Elongation % | 21 | – | – | 14 | 14 | 11 | – |
| Coefficient of Thermal Expansion µm/m⁰C | – | 13.3 | 13.7 | 14.3 | 15.1 | 15.5 | 16.7 |
| Thermal Conductivity /kcal/(hr.m.°C) | – | 14.4 | 16.1 | 17.9 | 19.6 | 21.4 | – |
| Modulus of Elasticity / x105 MPa | – | 2 | 1.93 | 1.79 | 1.72 | 1.65 | 1.52 |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Ahmed Sheets and Plates based in Safat, Kuwait, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Rene 41 foil offers numerous advantages, making it a preferred material for demanding applications. It excels in high-temperature environments, maintaining strength and stability up to 980°C (1800°F). The alloy’s exceptional creep resistance ensures reliability under prolonged stress, while its high tensile strength enhances durability. Rene 41 is also highly resistant to oxidation and corrosion, extending the lifespan of components in harsh conditions. Additionally, its precision and adaptability make it ideal for aerospace, gas turbines, and industrial applications requiring exceptional performance under extreme thermal and mechanical stresses.
Yes, we offer custom sizes for Rene 41 Foil to meet specific project needs. Our team at Ahmed Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
This superalloy is widely used in applications that demand exceptional heat resistance and mechanical strength in extreme environments. It’s commonly found in aerospace components like turbine engine parts, combustion liners, afterburner structures, and high-temperature ducting. The power generation sector relies on it for gas turbine components that face continuous thermal cycling. Additionally, it’s utilized in rocket propulsion systems, furnace hardware, high-temperature springs, and precision-engineered parts that operate in corrosive or oxidizing settings. Thanks to its reliability and stability at elevated temperatures, Rene 41 Foil is the go-to choice for critical high-performance applications.
