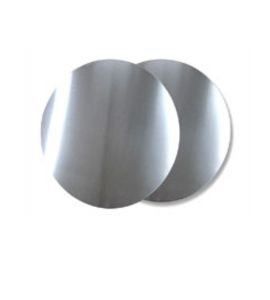

Ahmed Sheets and Plates is a reputable manufacturer and supplier of top-notch Monel 400 Circles based in Safat, Kuwait. Their products are celebrated for their exceptional corrosion resistance, strength, and reliability. The company prides itself on delivering precision-engineered circles that adhere to global standards, catering to a diverse array of industrial needs. With state-of-the-art production facilities and a talented team, Ahmed Sheets and Plates guarantees outstanding dimensional accuracy, durability, and performance in every Monel 400 Circle. Their unwavering commitment to quality, timely delivery, and customer satisfaction has established them as a trusted source for premium nickel-copper alloy components in demanding applications.
Monel 400 Circles are primarily made up of nickel and copper, with trace amounts of iron, manganese, silicon, sulfur, and carbon to boost performance. This alloy boasts remarkable mechanical properties, including high tensile strength, excellent ductility, and impressive toughness, even in sub-zero temperatures. Monel 400 is known for its exceptional resistance to seawater, acids, alkalis, and a variety of corrosive environments. Its good thermal conductivity and low magnetic permeability further enhance its reliability. These characteristics make Monel 400 Circles perfect for applications that demand consistent strength, corrosion resistance, and long-term stability in harsh conditions.
| Standard | ASTM B127, ASME SB127 |
| Dimensions | ASTM, ASME and API |
| Standard | JIS, AISI, ASTM, GB, DIN, EN, etc. |
| Thickness | 1 Mm To 100 mm. |
| Diameter | Upto 2000 Mm. |
| Circle Diameter | 3″ DIA up to 38″ DIA 1500 lbs max. |

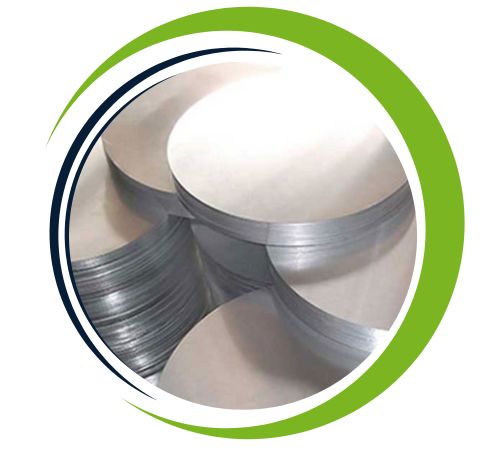

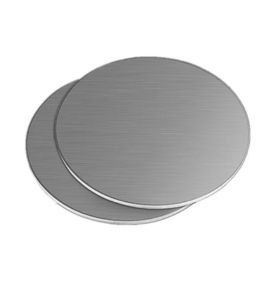

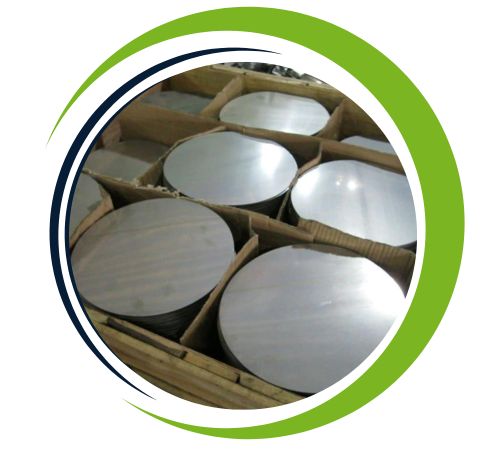

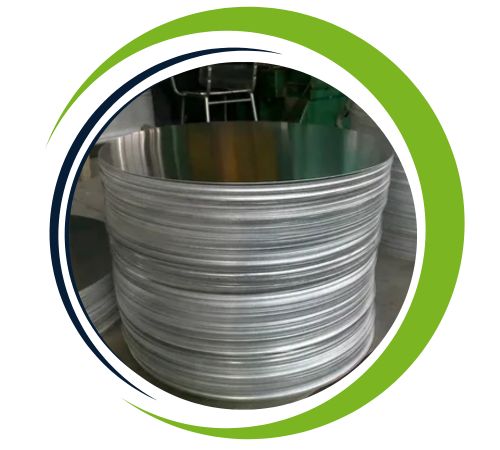

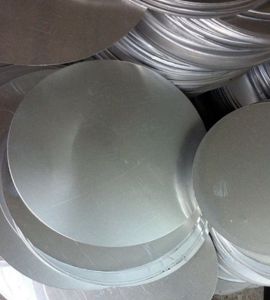

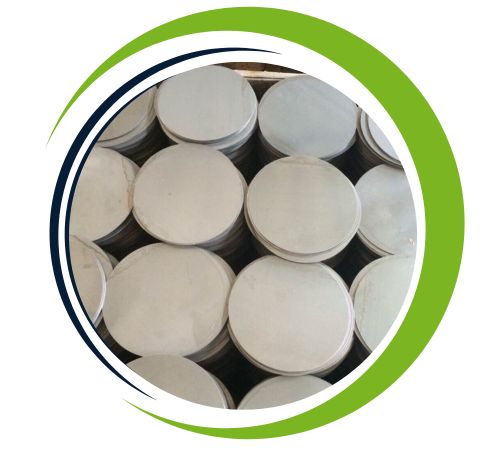

| Circles Form | Cold Rolled, Small Flat, Industrial, Proof Machined, Perforated, Forged Steel, Hot Rolled Circle. |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
| Grade | Ni | C | Al | Mn | Si | Fe | Cu | S |
| Monel 400 | 63.0 min | 0.3 max | 0.50 max | 2.0 max | 0.5 max | 1.0 – 2.5 | 28.0 – 34.0 | 0.02 max |
| Property | Value |
|---|---|
| Tensile Strength | 70-95 ksi (485-655 MPa) |
| Yield Strength | 30 ksi (205 MPa) min |
| Elongation | 35% min in 2 inches (50 mm) |
| Hardness | Rockwell B70 max |
| Modulus of Elasticity | 28 x 106 psi (193 GPa) |
| Poisson’s Ratio | 0.31 |
UNS N04400 Circle offers several advantages, including outstanding corrosion resistance in marine and chemical environments, making it ideal for seawater applications. Its high strength and durability ensure long-lasting performance under stress and high temperatures. The alloy’s resistance to pitting, crevice corrosion, and stress corrosion cracking makes it highly reliable in harsh conditions. Monel 400 is also known for its excellent thermal conductivity and machinability, making it easy to fabricate. Its versatility extends across a variety of industries, including marine, chemical processing, and aerospace, ensuring it meets demanding requirements while offering superior performance.
Yes, we offer custom sizes for Monel 400 Circle to meet specific project needs. Our team at Ahmed Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| Outer Diameter (OD) (mm) | Thickness (mm) | Size (mm) | Approximate Weight (kg) |
|---|---|---|---|
| 100 | 5 | 100 x 5 | 3.92 |
| 150 | 10 | 150 x 10 | 17.66 |
| 200 | 15 | 200 x 15 | 39.26 |
| 250 | 20 | 250 x 20 | 68.83 |
| 300 | 25 | 300 x 25 | 107.36 |
| 350 | 30 | 350 x 30 | 154.87 |
| 400 | 35 | 400 x 35 | 211.35 |
| 450 | 40 | 450 x 40 | 276.80 |
| 500 | 50 | 500 x 50 | 392.70 |
| Property | Value |
|---|---|
| Density | 8.80 g/cm³ |
| Melting Point | 1,455°C (2,651°F) |
| Electrical Resistivity | 0.49 µΩ·cm |
| Thermal Conductivity | 35.4 W/m·K |
| Thermal Expansion (25-100°C) | 13.4 µm/m·K |
| Specific Heat (at 25°C) | 0.385 J/g·K |
| Young’s Modulus | 193 GPa (28 x 10⁶ psi) |
| STANDARD | UNS | WERKSTOFF NR. | AFNOR | EN | JIS | BS | GOST |
|---|---|---|---|---|---|---|---|
| Monel 400 | N04400 | 2.4360 | NU-30M | NiCu30Fe | NW 4400 | NA 13 | МНЖМц 28-2,5-1,5 |
Monel 400 Circles find extensive use in industries that require outstanding corrosion resistance and mechanical strength. They’re commonly found in marine engineering, chemical processing plants, heat exchangers, pump and valve components, and oil and gas refining systems. Their seawater resistance makes them ideal for shipbuilding, offshore structures, and desalination units. Additionally, Monel 400 Circles are utilized in electrical components, pharmaceutical equipment, and aerospace assemblies due to their thermal and mechanical stability. With excellent durability, weldability, and formability, these circles are perfect for fabricating precision components.
