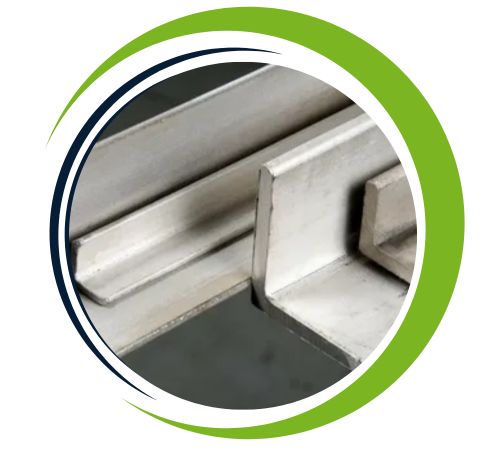

Ahmed Sheets and Plates is a reputable manufacturer and supplier of top-notch Inconel 601 Angles based in Safat, Kuwait. They specialize in creating nickel-chromium alloy structural components that are renowned for their exceptional corrosion resistance, heat tolerance, and impressive mechanical strength. The company takes pride in producing meticulously engineered Inconel 601 Angles that adhere to international industrial standards, ensuring they perform reliably even in the most demanding applications. With state-of-the-art manufacturing facilities and a talented technical team, Ahmed Sheets and Plates guarantees superior dimensional accuracy, consistent quality, and a long service life for every product. Their dedication to quality and timely delivery has established them as a trusted source for high-performance Inconel structural components.
Specifications : ASTM B166 / ASME SB166
Angle Size Range : 20 x 20 mm to 100 x 100 mm
Angles Thickness : 3 to 12 mm (depending on size)
Channel Size Range : Base: 80 to 150 mm; Side: 40 to 75 mm
Channel Thickness : 5 to 6 mm (depending on size)
Length : 3MTR, 4MTR, 5MTR, 6MTR, or Custom Cut Sizes
| STANDARD | WERKSTOFF NR. | UNS | JIS | BS | GOST | AFNOR | EN |
| Inconel 601 | 2.4851 | N06601 | NCF 601 | NA 49 | XH60BT | NC23FeA | NiCr23Fe |
| Grade | C | Mn | Si | Cu | S | Fe | Mo | Ni | Cr |
| Inconel 601 | 0.10 max | 1 max | 0.50 max | 1 max | 0.15 min | balance | – | 58.0-63.0 | 21.0–25.0 |
| Density | Melting Point | Tensile Strength | Yield Strength (0.2%Offset) | Elongation |
| 8.1 g/cm3 | 1411 °C (2571 °F) | Psi – 80,000 , MPa – 550 | Psi – 30,000 , MPa – 205 | 30 % |
We provide products that come with both mill test certificates and third-party test certificates, ensuring the highest standards of quality and compliance.
Ahmed Sheets and Plates based in Safat, Kuwait, is a leading supplier and stockist of high-quality metal products, including Sheets, Plates, Coils, Foils, Angles, Channels, Circles, and Slitting Coils, all offered with exceptional service and tailored to meet our customers specific requirements. With a focus on delivering superior products, we cater to a wide range of industries, providing reliable solutions for diverse applications. Our extensive inventory includes Known for our unique finishing techniques and commitment to quality. We are dedicated to ensuring customer satisfaction through dependable service and top-notch products.
Inconel 601 Angle offers numerous advantages, making it a preferred choice for demanding applications. Its exceptional oxidation resistance up to 1204°C (2200°F) ensures durability in high-temperature environments. The alloy’s superior corrosion resistance, especially against sulfur compounds and carburizing atmospheres, enhances its performance in chemical and thermal processes. Its mechanical strength and structural stability under extreme conditions minimize deformation and cracking. Inconel 601 is also easy to fabricate and weld, providing versatility for various industries, including aerospace, power generation, and petrochemical. Its longevity and reliability reduce maintenance costs significantly.
Yes, we offer custom sizes for Inconel 601 Angle to meet specific project needs. Our team at Ahmed Sheets and Plates is dedicated to providing tailored solutions for all your requirements. For more details, contact us at sales@aaronsheetsplates.com.
| Sizes (all Dimensions in milimeter) | Approx Weight Inconel 601 Angle Bar (kilogram/meter) | Inconel 601 Angle Bar Sizes (all Dimensions in milimeter) | Approx Weight Inconel 601 Angle Bar (kilogram/meter) |
|---|---|---|---|
| 25 x 25 x 3 | 1.13 | 63 x 63 x 8 | 7.50 |
| 25 x 25 x 4 | 1.46 | 65 x 65 x 4 | 4.00 |
| 25 x 25 x 5 | 1.78 | 65 x 65x 5 | 5.02 |
| 30 x 30 x 3 | 1.37 | 65 x 65 x 8 | 7.75 |
| 30 x 30 x 4 | 1.78 | 70 x 70 x 5 | 5.35 |
| 30 x 30 x 5 | 2.20 | 70 x 70 x 6 | 6.40 |
| 40 x 40 x 3 | 1.83 | 75 x 75 x 6 | 6.85 |
| 40 x 40 x 4 | 2.41 | 75 x 75 x 8 | 9.05 |
| 40 x 40 x 5 | 2.97 | 80 x 80 x 6 | 7.35 |
| 50 x 50 x 4 | 3.05 | 80 x 80 x 8 | 9.65 |
| 50 x 50 x 5 | 3.78 | 80 x 80 x 10 | 11.98 |
| 63 x 63 x 4 | 3.90 | 100 x 100 x 8 | 12.20 |
| 63 x 63 x 5 | 3.90 | 100 x 100 x 12 | 18.00 |
| Size in Inches | Est. Weight per Ft. Lbs. | Est. Weight per 20′ Bar |
|---|---|---|
| 3/4 x 3/4 x 1/8 | 0.59 | 11.80 |
| 1 x 1 x 1/8 | 0.80 | 16.00 |
| 1 x 1 x 3/16 | 1.16 | 23.20 |
| 1 x 1 x 1/4 | 1.49 | 29.80 |
| 1-1/4 x 1-1/4 x 1/8 | 1.01 | 20.20 |
| 1-1/4 x 1-1/4 x 3/16 | 1.48 | 29.60 |
| 1-1/4 x 1-1/4 x 1/4 | 1.92 | 38.40 |
| 1-1/2 x 1-1/2 x 1/8 | 1.23 | 24.60 |
| 1-1/2 x 1-1/2 x 3/16 | 1.80 | 36.00 |
| 1-1/2 x 1-1/2 x 1/4 | 2.34 | 46.80 |
| 2 x 2 x 1/8 | 1.65 | 33.00 |
| 2 x 2 x 3/16 | 2.44 | 48.80 |
| 2 x 2 x 1/4 | 3.19 | 63.80 |
| 2 x 2 x 3/8 | 4.70 | 94.00 |
| 2-1/2 x 2-1/2 x 3/16 | 3.07 | 61.40 |
| 2-1/2 x 2-1/2 x 1/4 | 4.10 | 82.00 |
| 3 x 3 x 1/4 | 4.90 | 98.00 |
| 4 x 4 x 1/4 | 6.60 | 132.00 |
| 4 x 4 x 3/8 | 9.80 | 196.00 |
Inconel 601 Angles find their place in various industries that demand superior corrosion resistance, high-temperature strength, and mechanical durability. They are commonly used in furnace components, heat exchangers, chemical processing equipment, and petrochemical plants. Additionally, these angles are utilized in aerospace components, power generation units, and industrial machinery that face high thermal stress or corrosive media. Their excellent formability, strength, and resistance to oxidation make Inconel 601 Angles ideal for fabricating structural frameworks, supports, specialized industrial components, and high-performance equipment designed to operate in extreme environments.
